EDDIE Machinery FC15D CR:

17-25t Excavator Heavy-Duty Cast Concrete Shear

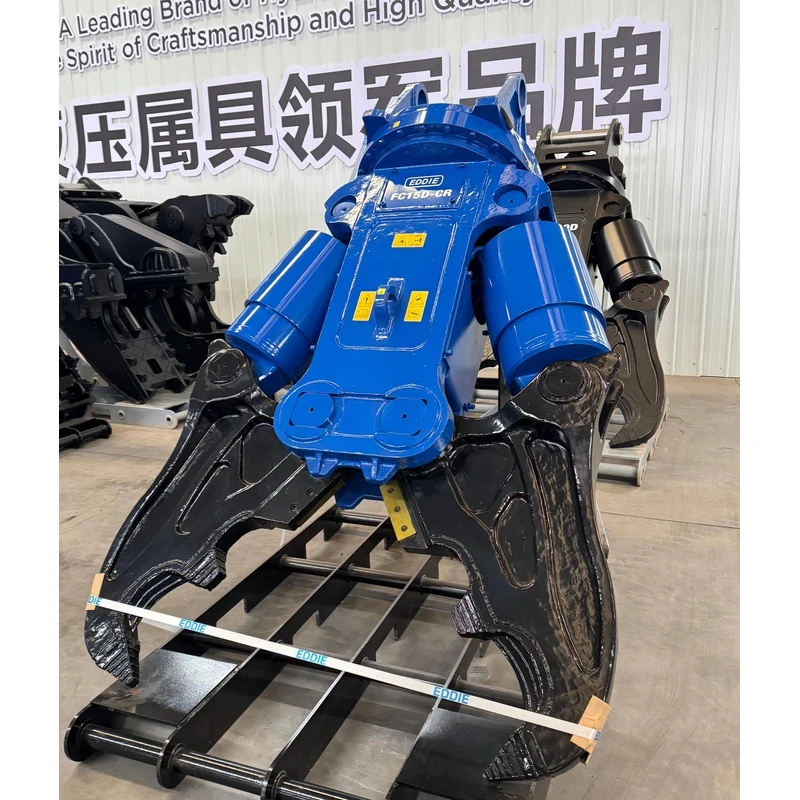

Meet the FC15D CR Demolition Crusher, the mid-range powerhouse engineered for 17 to 25-ton carriers.

This CR-type model is the industry standard for primary demolition and recycling yards,

bridging the gap between agility and brute strength. The cast steel body

and extended blade geometry ensure maximum wear resistance

and superior structural integrity when tackling bridge abutments and industrial foundations.

· Optimized for High-Volume Processing: Weighing 1,960 kg (4,321 lbs) , this attachment utilizes a 200-300 kg/cm² operating pressure to deliver a massive 3,050 kN average shear force.

This enables the FC15D CR to pulverize concrete piles

and cut through I-beams without stalling the excavator pump.

· Wider Jaw Acceptance: The 950mm (37.4 inch) jaw opening easily swallows large chunks of demolition debris,

reducing the need for secondary hammering and speeding up truck loading times.

· 30% Faster Cycle Times: The advanced high-flow acceleration valve ensures the jaw closes rapidly,

increasing overall tons-per-hour processing capacity.

Real-World Application Scenario:
Deployed extensively in highway bridge demolition.

The FC15D CR is mounted on a long-reach excavator to crush concrete deck sections

and shear the supporting rebar cages from a safe distance,

eliminating the need for workers to use hand torches near unstable structures.
