The FQC06R R-Series 360° rotating excavator quick coupler features 360° free rotation, a dual-lock safety structure, and reinforced pulley design. Ideal for 10-15t excavators, it supports high-demand attachments (crushers, vibrators) with large-flow capability.
FQC06R R-Series 360° Rotating Excavator Quick Coupler
The FQC06R is a high-performance rotating quick coupler engineered
for 10-15t excavators, designed to streamline attachment switching
and boost job site efficiency.

Key Benefits of FQC06R
360° Free Rotation: Built-in full rotation capability eliminates the need to reposition the excavator,
supporting seamless use of multiple attachments
(breakers, crushers, vibrators) and reducing operational costs.
Reinforced Pulley System:
The pulley uses a steel composite process, delivering smooth lubrication
while withstanding heavy impacts – perfect for tough construction environments.
Large-Flow Rotating Core:
Equipped with a high-flow rotating core joint, it powers high-demand attachments
(e.g., crushers, vibrators) that require substantial hydraulic flow.
Dual-Lock Safety Structure:
The dual-lock design ensures attachments stay securely connected,
minimizing detachment risk during high-intensity operation.
Compact Gear Transmission:
An integrated gear system saves space while increasing torque output,
making it ideal for tight job sites.

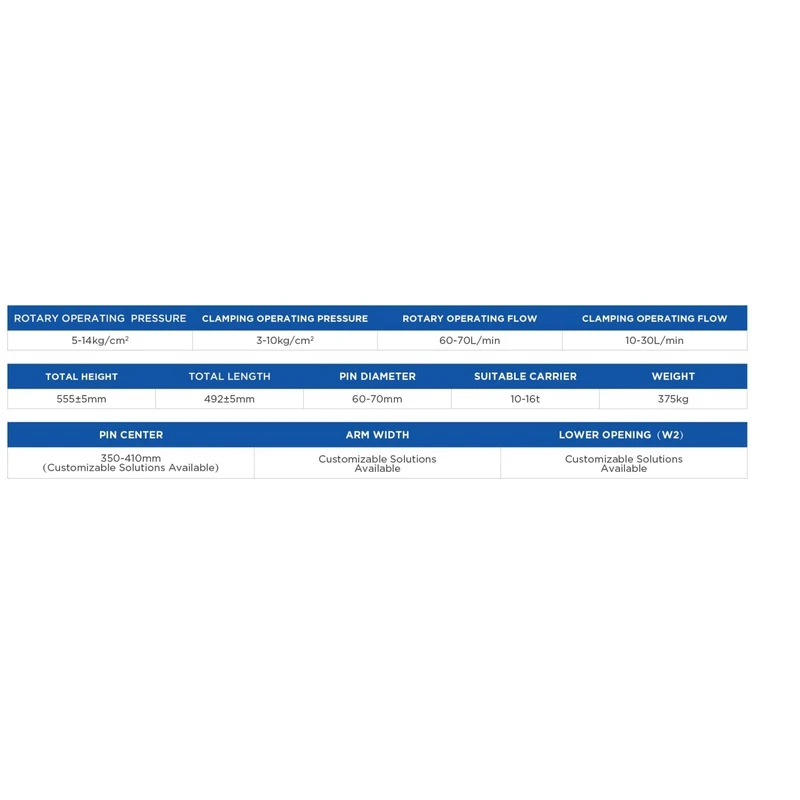

Parameter | Value |
|---|---|
Applicable Excavator | 10 - 15t |
Center Distance (C) | 350 - 410mm (adjustable) |
Pin Diameter (φD) | 60 - 70mm |
Weight | 375kg |
Rotation Working Pressure | 5 - 14kg/cm² |
Rotation Flow Rate | 60 - 70L/min |
Total Length (L) | 555mm |
Total Width (W) | 492mm |
Whether you’re working on demolition, excavation, or material handling,
the FQC06R R-Series rotating quick coupler delivers the flexibility,
safety, and power your team needs.
