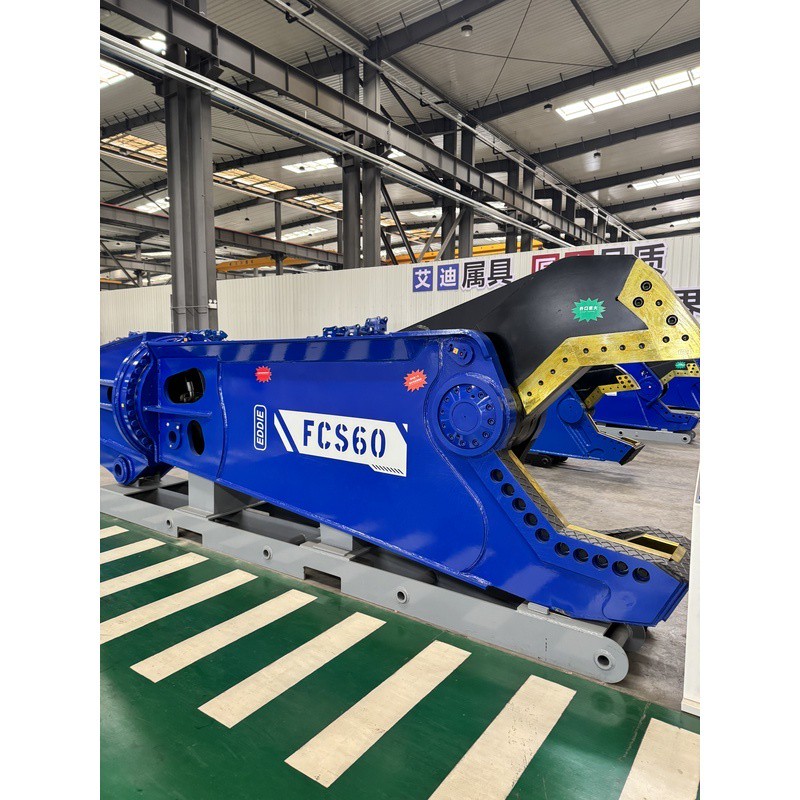

EDDIE Machinery FCS60:

60-70t Excavator Ultra-Heavy Eagle Shear

The EDDIE FCS60 is a top-tier eagle shear for 40-50 ton (large arm) or 60-70 ton (small arm) excavators.

With a 930mm max opening and 10960kN shearing force,

it handles the heaviest steel structures and industrial metal scrap.

Its advanced design—including large-diameter bearings,

double cylinders, and imported blades—delivers unmatched performance

in the most demanding heavy-duty applications.

Key Features

• Dual Arm Compatibility: Fits small/large arms of the largest excavators.

• Durable Construction: Large-diameter bearings minimize pressure and extend component lifespan.

• Extreme Cutting Power: Double-cylinder structure supports ultra-heavy workpiece shearing.

• Long-Lasting Blades: Imported wear-resistant material for high hardness and consistent performance.

Application Scenarios

• Ultra-large steel structure demolition

• Heavy industrial metal scrap processing

• Thick steel plate & beam cutting (extreme thickness)

  Parameter	Value
  Max Opening	930mm
  Weight (Large Arm)	7800kg
  Weight (Small Arm)	7500kg
  Closing Working Pressure	275-380kg/cm²
  Closing Flow Rate	300-350L/min
  Rotation Working Pressure	140-170kg/cm²
  Rotation Flow Rate	30-50L/min
  Max Shearing Force	10960kN
  Compatible Excavator (Small Arm)	60-70t
  Compatible Excavator (Large Arm)	40-50t
