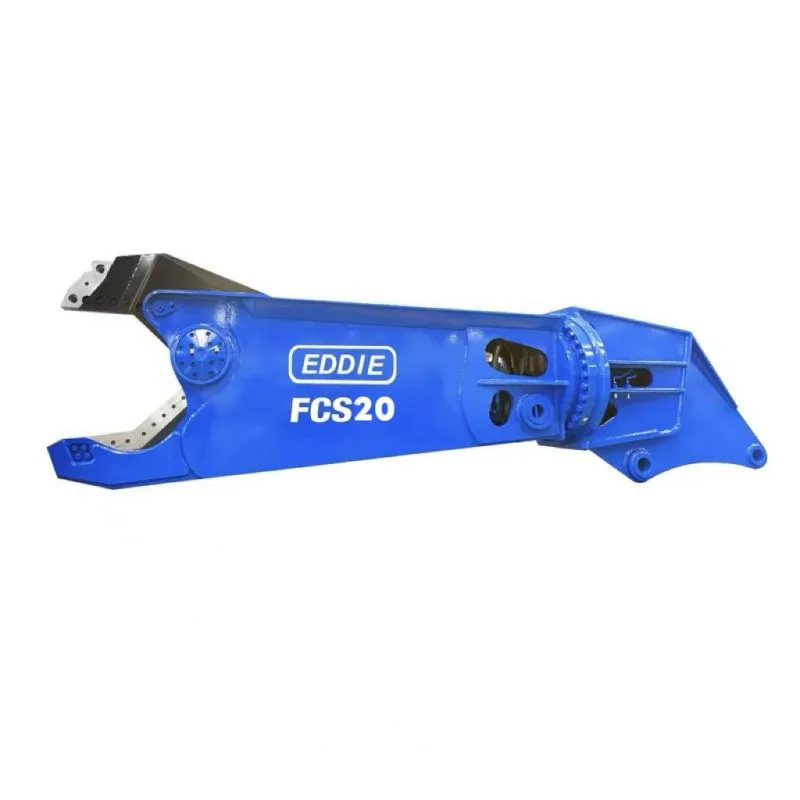

EDDIE Machinery FCS20:

17-25t Excavator Eagle Shear for Steel Cutting

The EDDIE FCS20 is a mid-size eagle shear for 17-25t excavators,

The EDDIE FCS20 is a versatile eagle shear available for 11-16 ton (large arm) or 17-25 ton (small arm) excavators.

With a 563mm max opening, 4990kN shearing force, and 2400kg (large arm) weight,

it handles heavy structural steel cutting and medium demolition tasks.

Its high-quality bearings, double cylinders, and imported blades ensure efficient, durable performance.

• Dual Excavator Compatibility: Works with both small/large arms of mid-sized excavators.

• Long-Lasting Components: Large-diameter bearings minimize pressure and wear.

• Powerful Cutting: Double-cylinder design supports heavy workpiece shearing.

• Premium Blades: Imported wear-resistant material for high hardness and longevity.



Application Scenarios

• Heavy structural steel cutting

• Demolition of steel-framed structures

• Large-volume metal scrap processing

  Parameter	Value
  Max Opening	563mm
  Weight (Large Arm)	2400kg
  Weight (Small Arm)	2100kg
  Closing Working Pressure	300-350kg/cm²
  Closing Flow Rate	180-240L/min
  Rotation Working Pressure	80-140kg/cm²
  Rotation Flow Rate	30-50L/min
  Max Shearing Force	4990kN
  Compatible Excavator (Small Arm)	17-25t
  Compatible Excavator (Large Arm)	11-16t
