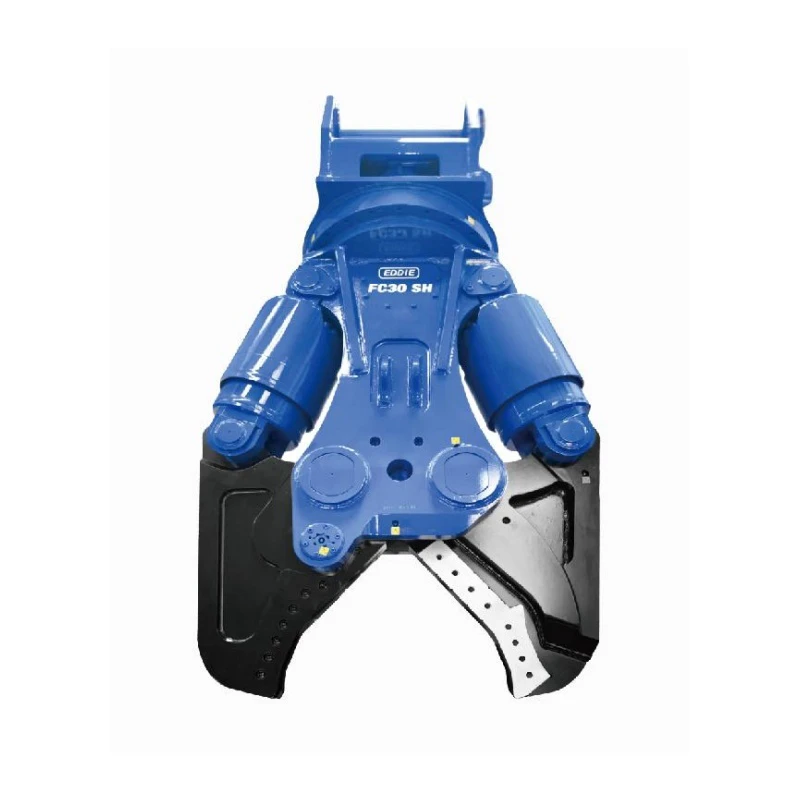

EDDIE Machinery FC30SH: Mid-Size Hydraulic Shear for 20-30t Excavators

The FC30SH is a mid-size hydraulic shear engineered for 20-30t excavators,

combining 1660kN cutting force and a 745mm jaw opening to handle mid-scale steel structures, roadways,

and foundation work.

• Reinforced jaw design for deformation resistance

• Synchronized control system for efficiency

• Wear-resistant materials for 20% longer lifespan

Ideal Applications:

• Commercial building demolition

• Steel framework cutting

• Infrastructure renovation

  Specification	Value
  Model	FC30 SH
  Max Jaw Opening	745mm
  Weight	2960kg
  Average Cutting Force	1660kN
  Combined Working Pressure	300-350kg/cm²
  Combined Flow Rate	180-240L/min
  Rotating Working Pressure	120-160kg/cm²
  Rotating Flow Rate	30-50L/min
  Applicable Excavator	20-30t
  Rotation Type	360° Free Rotation
