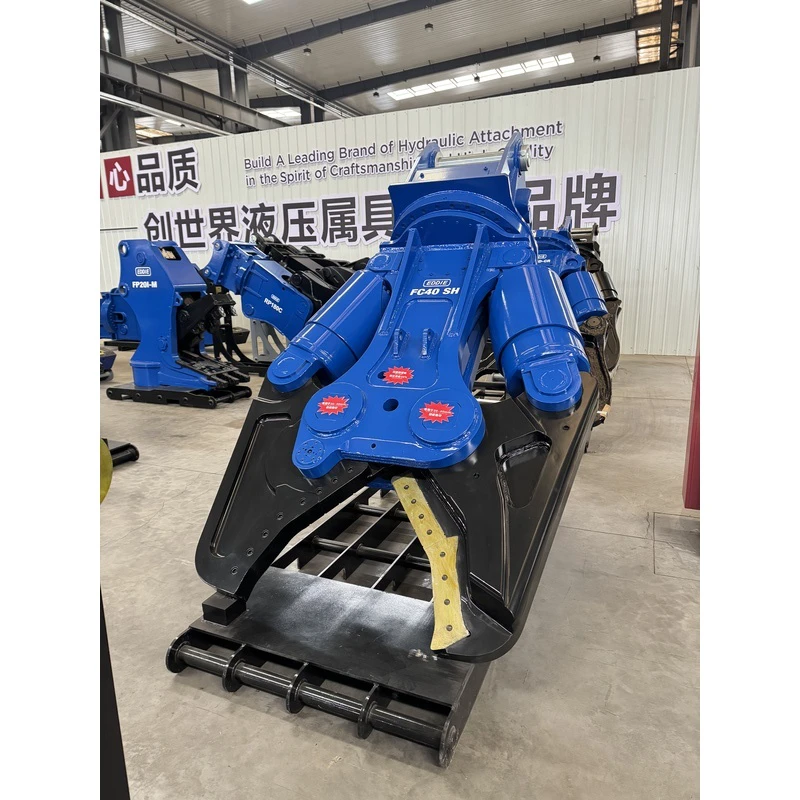

EDDIE Machinery FC40SH: 30-40t Large Hydraulic Shear for Heavy Steel Demolition

The EDDIE Machinery FC40SH is a heavy-duty hydraulic shear designed for 30-40t excavators,

delivering 2540kN cutting force and an 800mm jaw opening to tackle large steel beams, industrial frameworks,

and infrastructure demolition.

• 2540kN extreme cutting power for thick steel

• 360° free rotation for flexible positioning

• 260MPa high-pressure cylinder for stability

• Imported blade and reinforced body for durability

Large-scale steel structure demolition

• Bridge and building dismantling

• Industrial plant decommissioning

  Specification	Value
  Model	FC40 SH
  Max Jaw Opening	800mm
  Weight	4200kg
  Average Cutting Force	2540kN
  Combined Working Pressure	300-350kg/cm²
  Combined Flow Rate	180-240L/min
  Rotating Working Pressure	120-160kg/cm²
  Rotating Flow Rate	30-50L/min
  Applicable Excavator	30-40t
  Rotation Type	360° Free Rotation
